RFID 125 kHz Reader with 1602 display

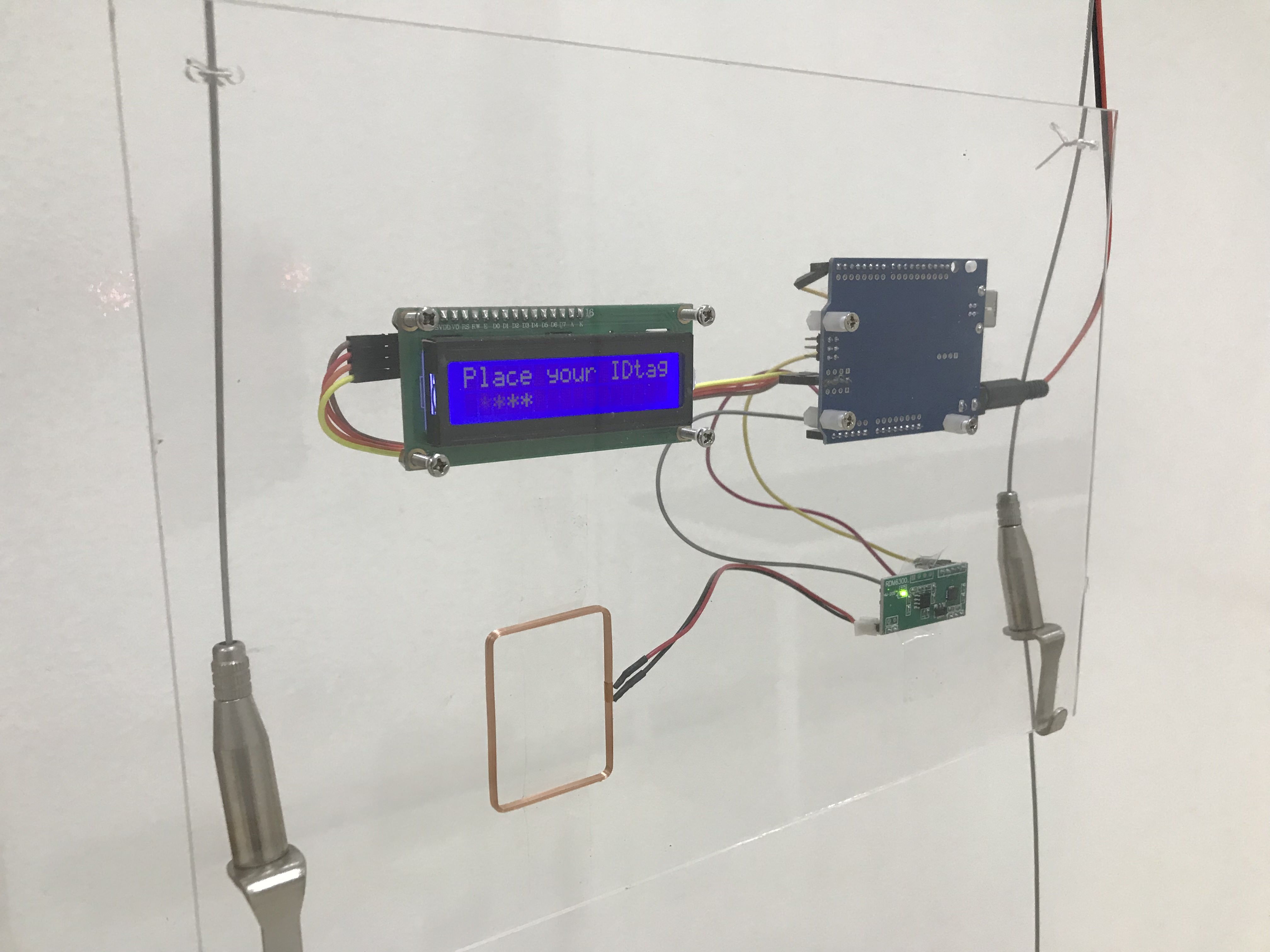

RFID reader for 125 kHz with 1602 display on Arduino. This is how our setup at the American International School Vietnam looks like:

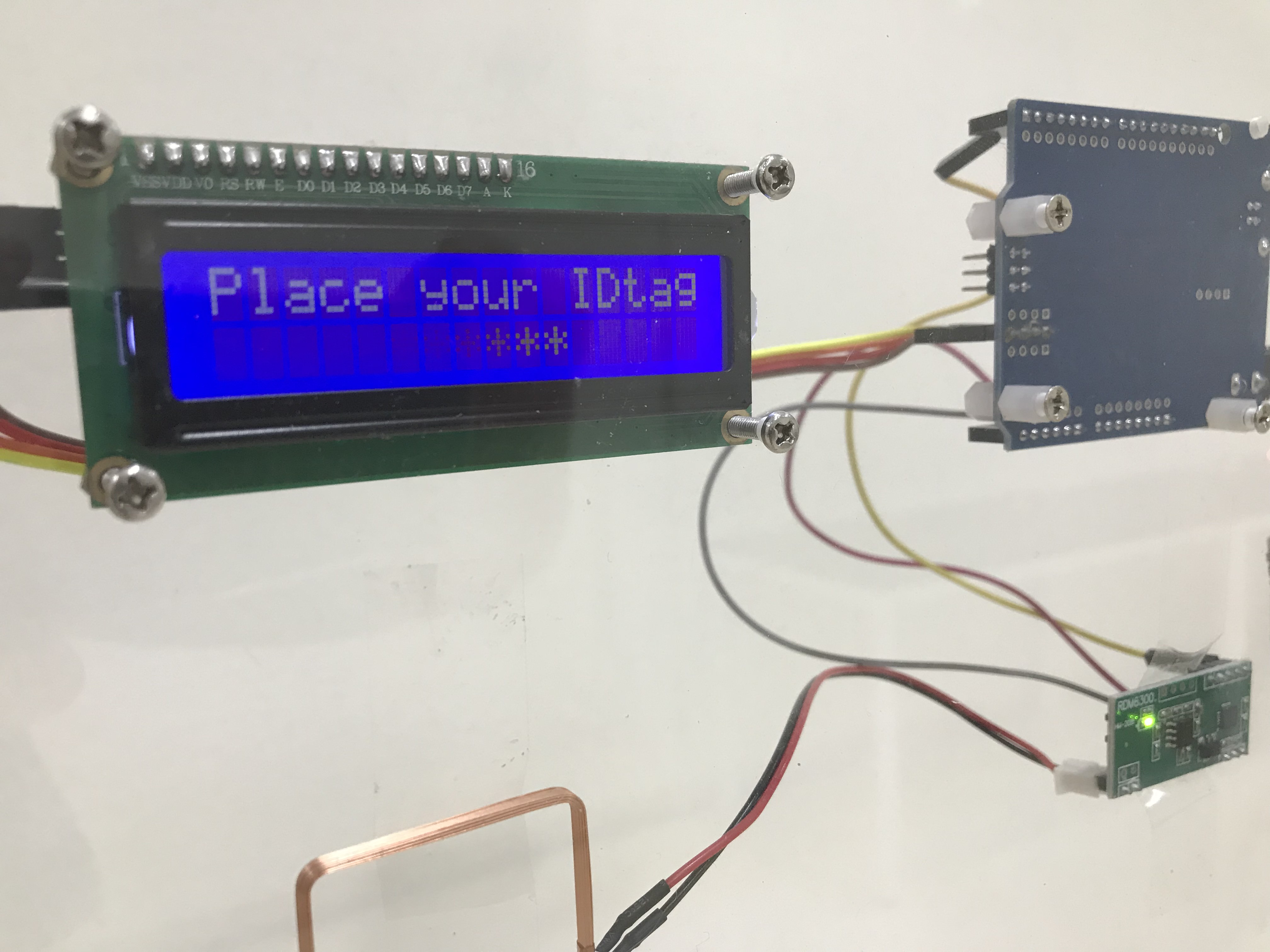

The display encourages you to …
And that’s all the Arduino behind it. Next time we use plexiglas to be more transparent :)
Find the code here: (https://github.com/kreier/rfid/blob/master/arduino/rfid-125.ino)
Materials
All materials were ordered at CỬA HÀNG IC ĐÂY RỒI. Total cost: 231.000₫ (10 US$). This is the list:
- Arduino UNO R3 DIP 110.000₫ Arduino Uno
- Module RFID RDM6300 125KHz giao tiếp UART 59.000₫ RFID interface 125 kHz
- LCD1602 xanh lá 5V 30.000₫ LCD display, 16 symbols in 2 rows
- Module I2C giao tiếp LCD1602, LCD1604, LCD2004 14.000₫ I2C adapter for display
- Bó dây jumper 100MM Some jumper wires 18.000₫
Building steps
- Connect the RFID kit to the Arduino, as well as the 1602 with the I2C adapter and 4 wires
- Connections according to link will follow
- Upload the software found in the link above. Don’t forget the library for the hd44780 controller and the hd44780_I2C expansion set. Files are located under library.
Got to the wiki for further details. We work on a new RTL-SDR to visualize the communication between the cards on the 125 kHz and 13.56 MHz frequency.

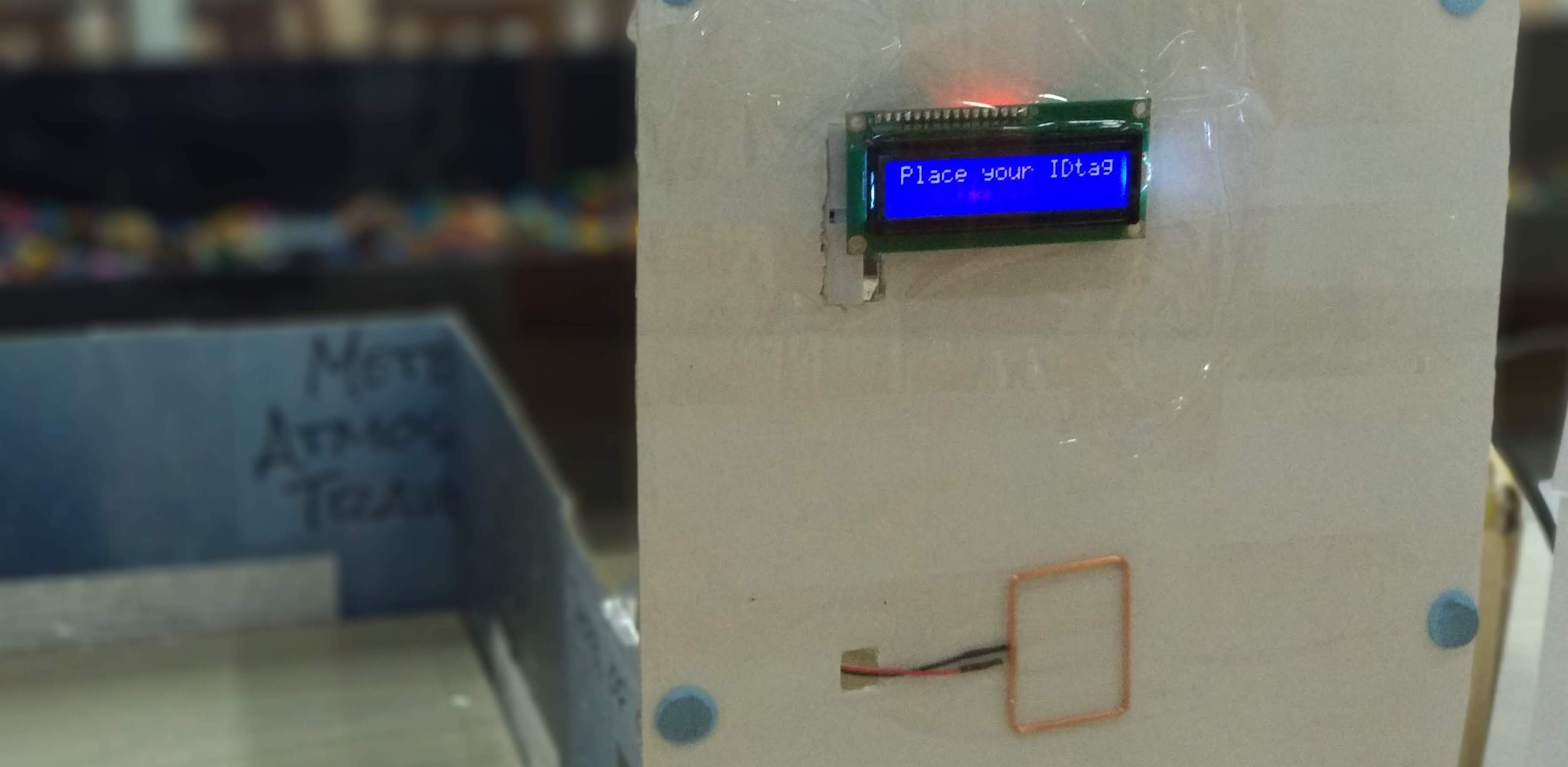

Old pictures from 2018

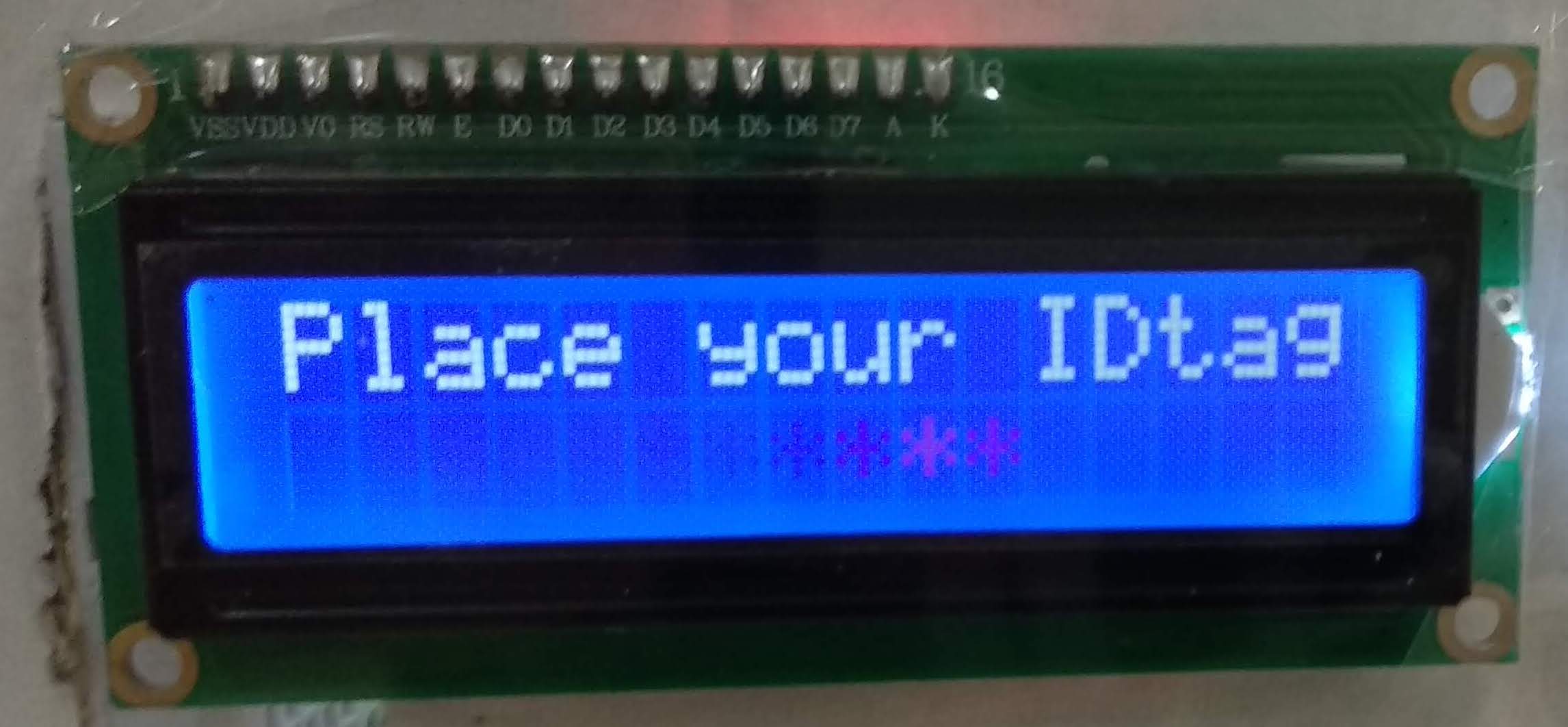

The display encourages you to …

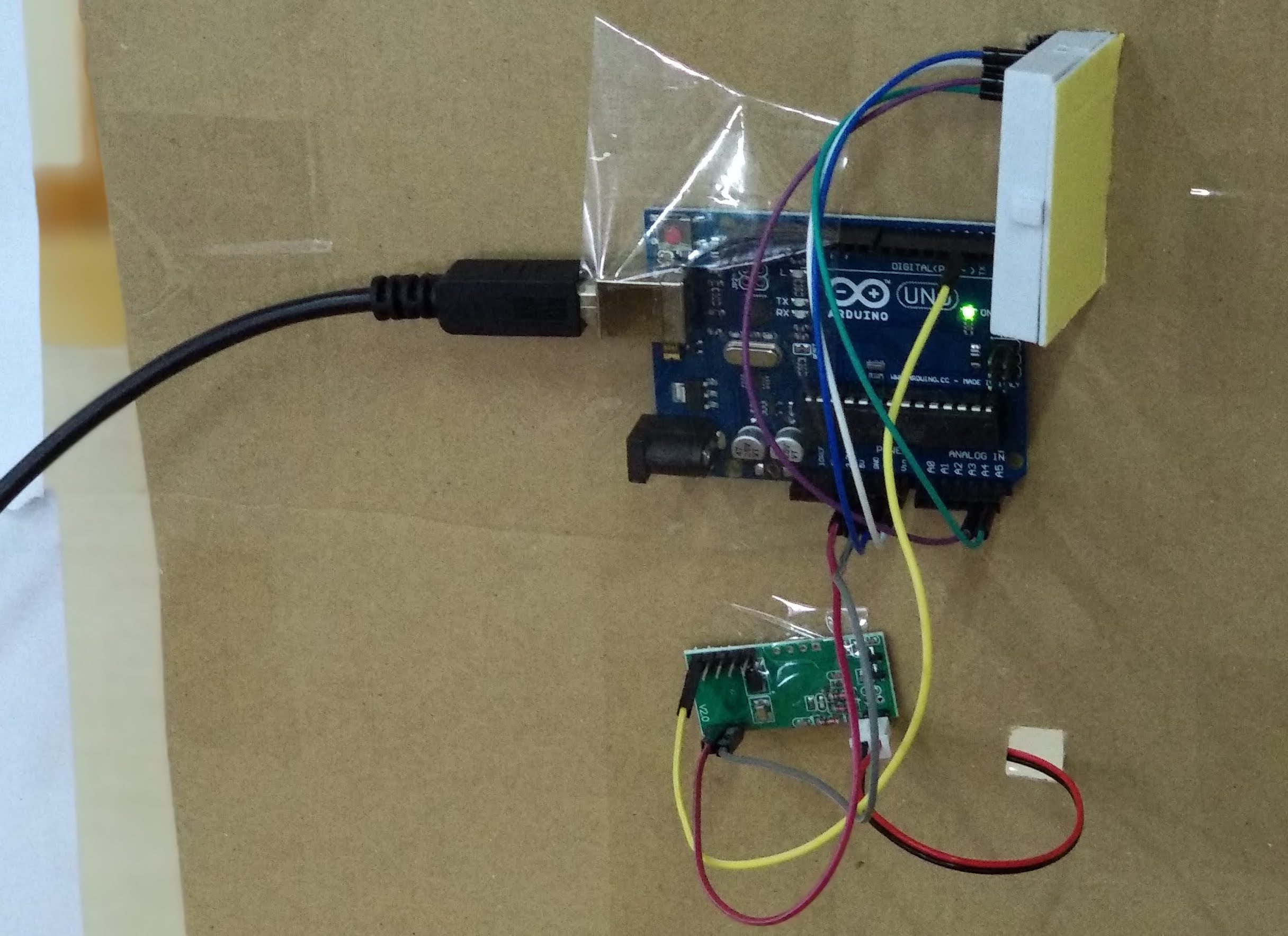

And that’s all the Arduino behind it. Next time we use plexiglas to be more transparent :)
2019

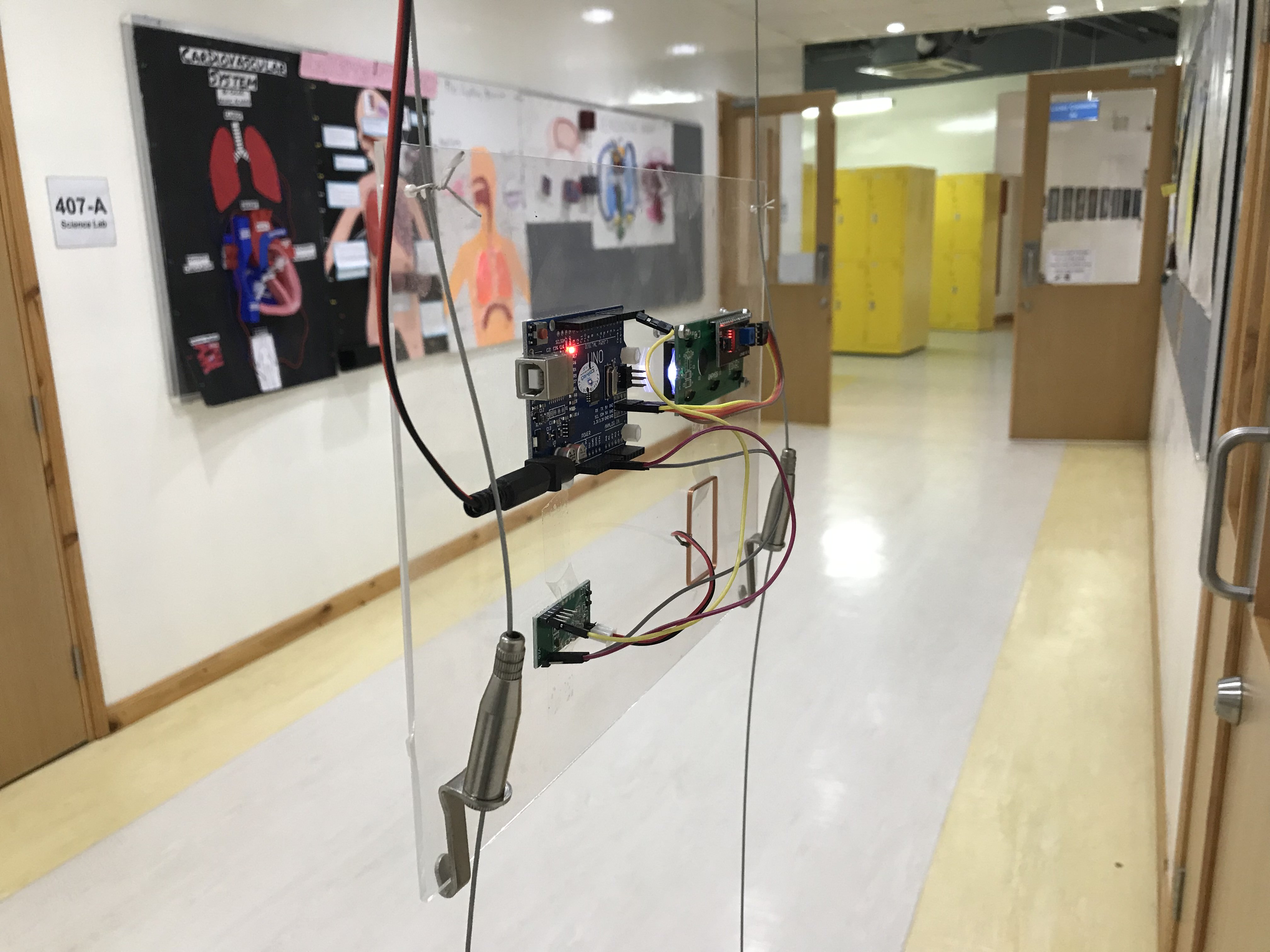

September 2019 it is between 407B and 407A on the fourth floor:
